Product Description:
The J30J series micro‑rectangular connectors are designed for applications demanding ultra‑compact size, lightweight structure, and high reliability. As a high‑density miniature connector built to withstand harsh environments, the J30J series serves as a critical component in the miniaturization and weight optimization of modern electronic systems.
Contact System
Features flexible twist‑pin contacts with a 1.27 mm contact pitch for stable electrical performance.
Available contact configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins.
Contacts are constructed from gold‑plated copper alloy to deliver low contact resistance and excellent corrosion resistance.
Housing & Shielding
Housed in rugged aluminum alloy with electroless nickel plating for durability and effective shielding.
Equipped with threaded coupling to ensure a secure, vibration‑resistant connection in demanding operating conditions.
Termination Options
Supports multiple termination styles, including solder termination, right‑angle / straight PCB mounting, and crimp‑to‑wire assembly.
Contact Arrangements:
Technical Data:

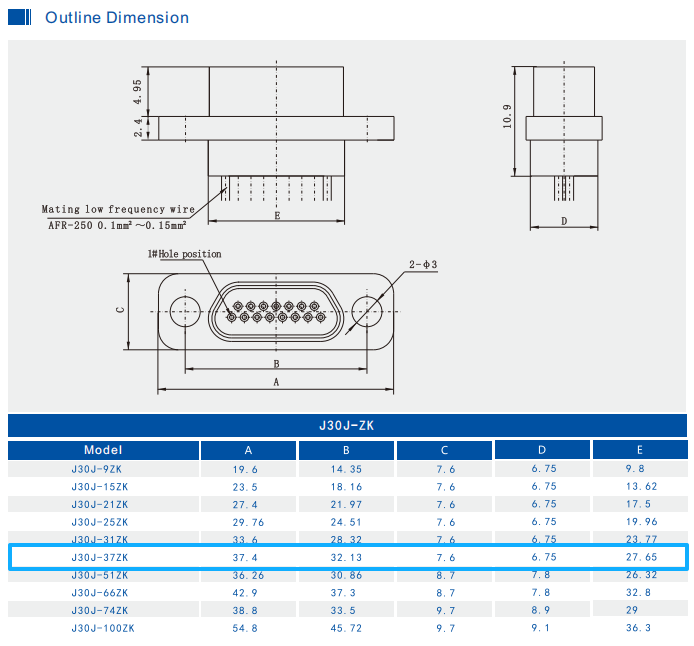

Outline Dimension of J30J Series Connector 37 contacts Female Socket:
| Product Model |
J30J-37ZKP-200 (37pins, female socket, wire length 200mm)
|
| Technical |
Materials & Finish |
| Impedance |
/ |
Center Conductor |
Copper Alloy, Gold Plating |
| DWV |
800V |
Outer Conductor |
Aluminum Alloy, Nickle Plating |
| Insulation Resistance |
>5000MΩ |
Insulation Dielectric |
PBT |
| Temperature |
Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ |
Applications:
Aerospace: Radar system, satcom, and telemetry & control systems
Electronics: Communication electronics, vehicle-mounted equipment and systems
High-end Industry: Medical equipment, testing instruments, downhole detection equipment
Microwave & RF Equipment: Miniature transceiver modules, PCB-to-PCB / PCB-to-cable interconnection
